We have re-designed our water swivel that is fitted to all Xcalibre coring trailers, that we simply call the "Water Swivel +"

[71001211] WSWVL ASSY (XE50)

‍

Utilising our in-house multi axis machining facilities we now produce the water swivel from one piece of aluminium, giving increased strength, more accurate dimensions, increased durability together with a hard wearing anodised finish & warning logo. Click here to request a quote

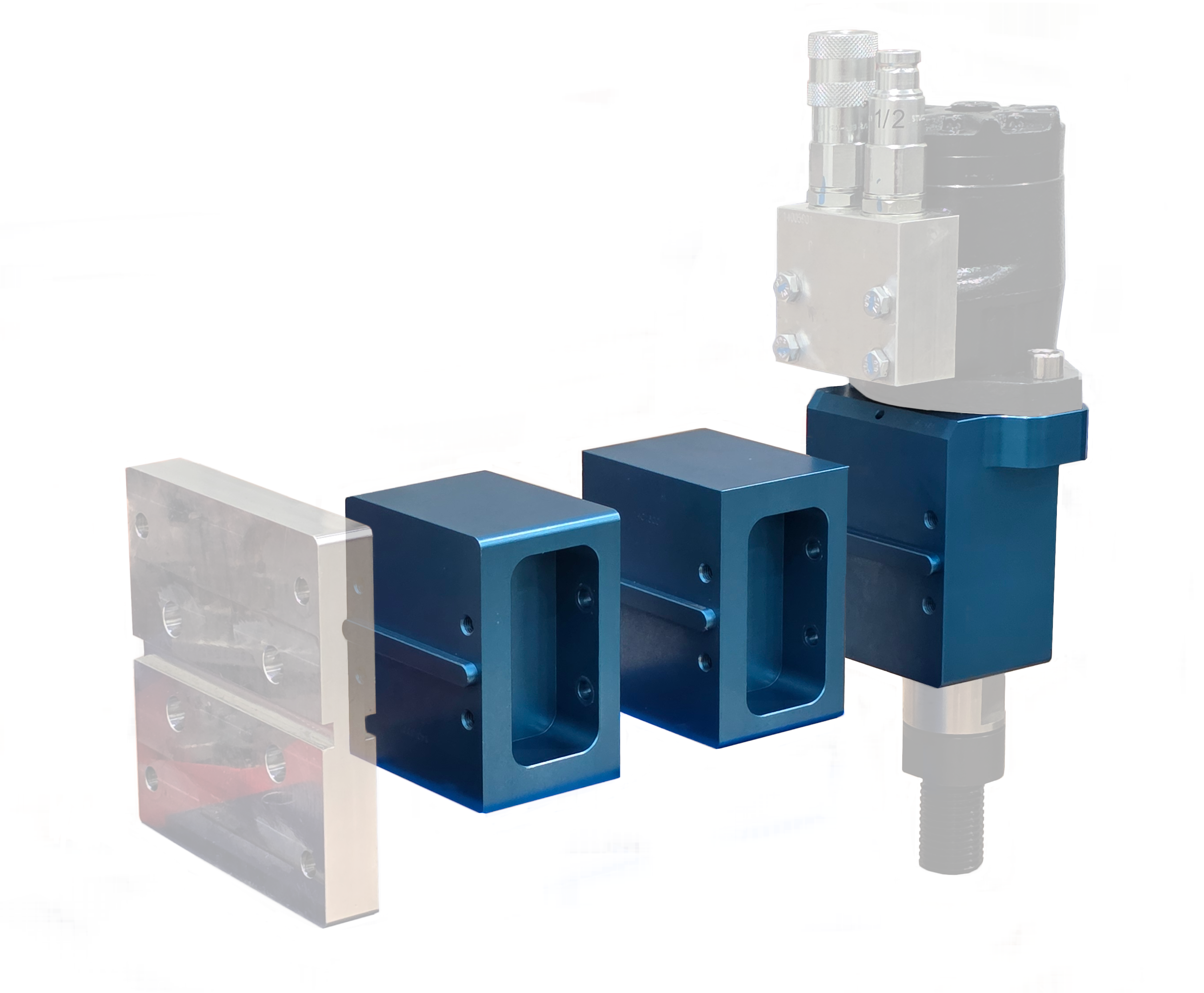

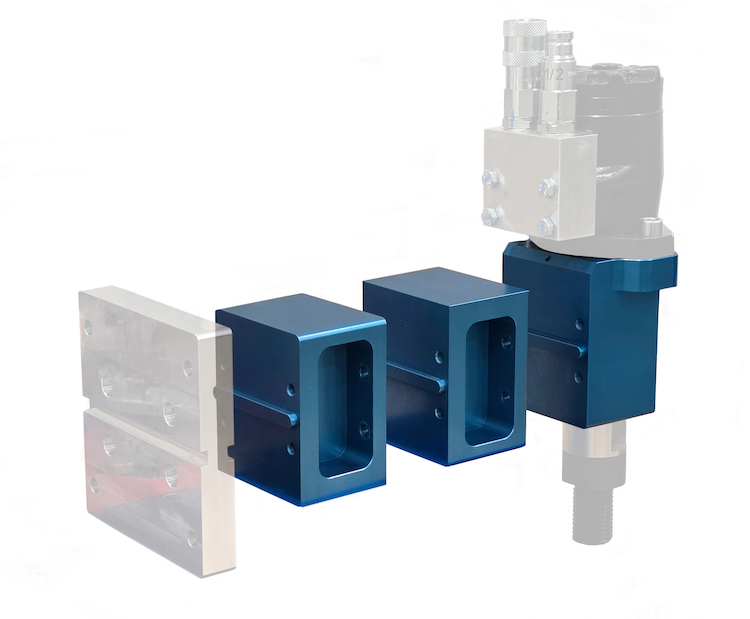

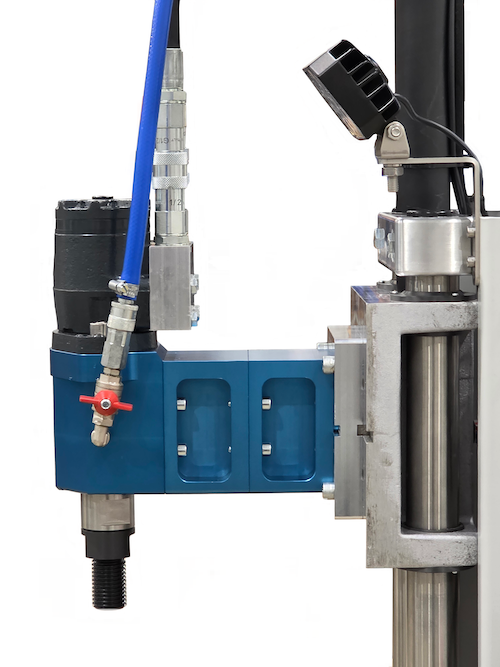

Whilst our new design uses the existing bearings, shaft & seals it now comes in two parts comprising water swivel and an integral 75mm spacer block. This modular design allows the use of additional 75mm spacer blocks when using larger diameter core barrels.

Every additional 75mm spacer increases the diameter of usable core barrel by 150mm.

( NB: Using additional spacers increases the force exerted onto the drill carriage & guide bars, so operators should take care not to apply too much drill feed pressure when using additional spacers)

‍

‍

‍
