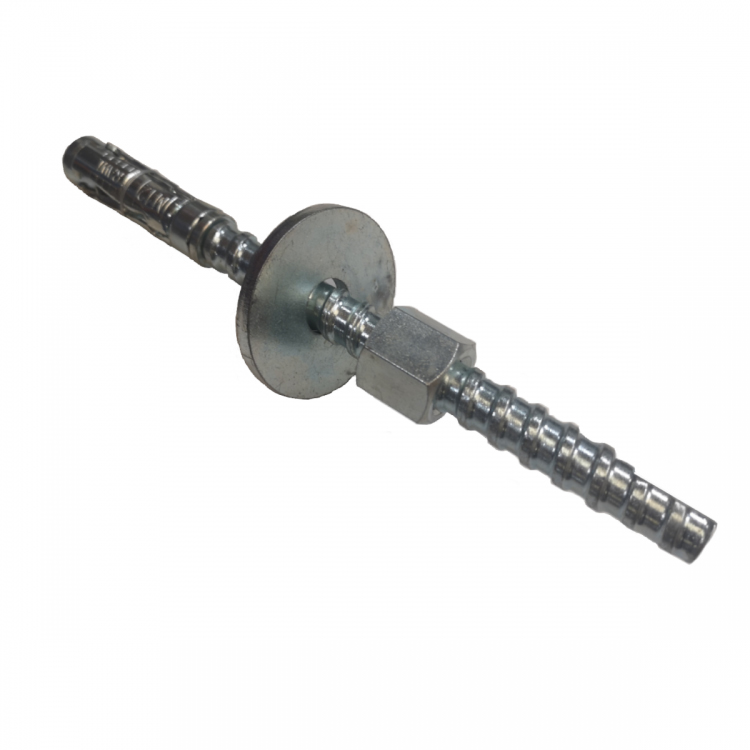

Anchor Bolt Kit Complete SW30 [71005731]

Anchor Bolt Kit Complete SW30 [71005731]

M12 Fast Fixing 250mm o/a.

Spare parts
We stock a full range of spare parts and consumables.
View parts
Download the data sheet
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Need advice or more information? Get in touch

Product information


20mm drill required for M12 Anchor bolt kit.

Extracting – Once the rig is unbolted and the anchor bolt still in the ground tight.

  1. Undo the bolt 3-4 turns and then tap the top of the bolt with some gentle force. By doing this the taper in the Rawl is pushed backwards removing the outwards holding force of the Rawl, that was tight in the hole.
  2. Wiggle the bolt and to loosen the Rawl and push in the expandable side walls of the Rawl, there will be some loose debris in the hole and you may have to push and wiggle until the Rawl is free.

[87950025] M12 Rawlbolt Shield only
